Process Flow
Pipe Line Process map
Category
Process
Process Description
1st Forming
For easy assembly of PIPE with counterparts such as hoses and processed products, the ends are formed and processed into the shape of connector birds
Banding
Bending the pipe into a predetermined shape and curvature radius.

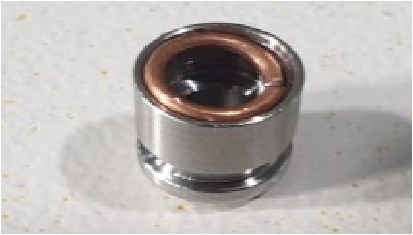

Copper Ring Assembly
Assembling the copper ring onto the sleeve for brazing.

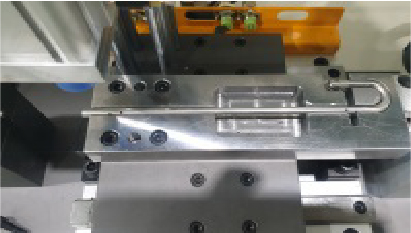

Copper Ring Inspection and Press-Fitting
A process that inspects the presence of the copper ring using vision inspection and press-fits the pipe into the sleeve with a specified torque only for OK products.
Category
Process
Process Description

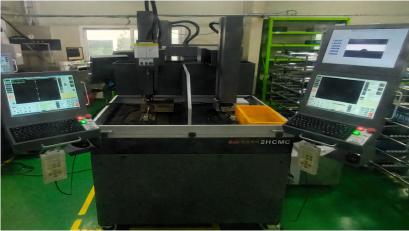

Super Drill
A process for precision machining spray holes on the pipe.
Cleaning, Inspection
Ultrasonic cleaning for removing oil and foreign substances from the inner and outer surfaces of pipes.
Packaging, Shipment
Packing pipes in boxes according to the delivery unit.
